Double Wire Fence

Material:
Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually. The choose wire diameters are 6MM*2+5MM*1. 8MM*2+6MM*1. It obtains high strong powers to resist the construction.

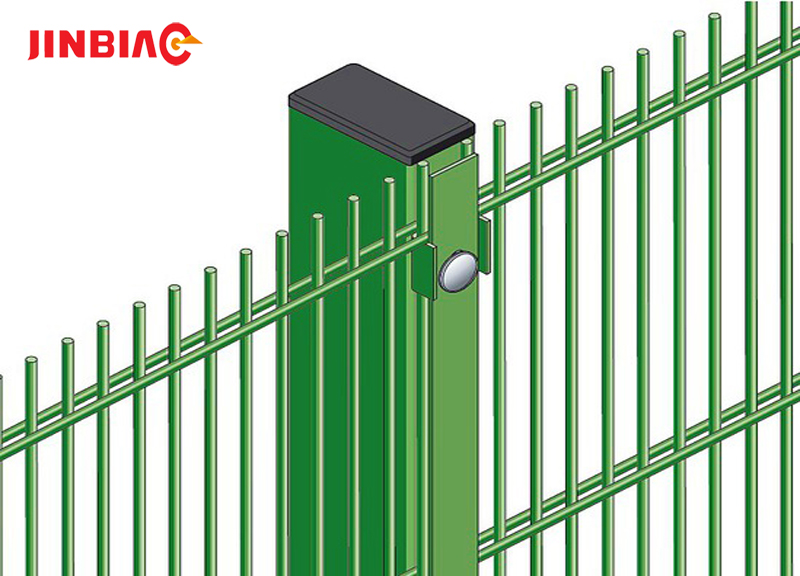

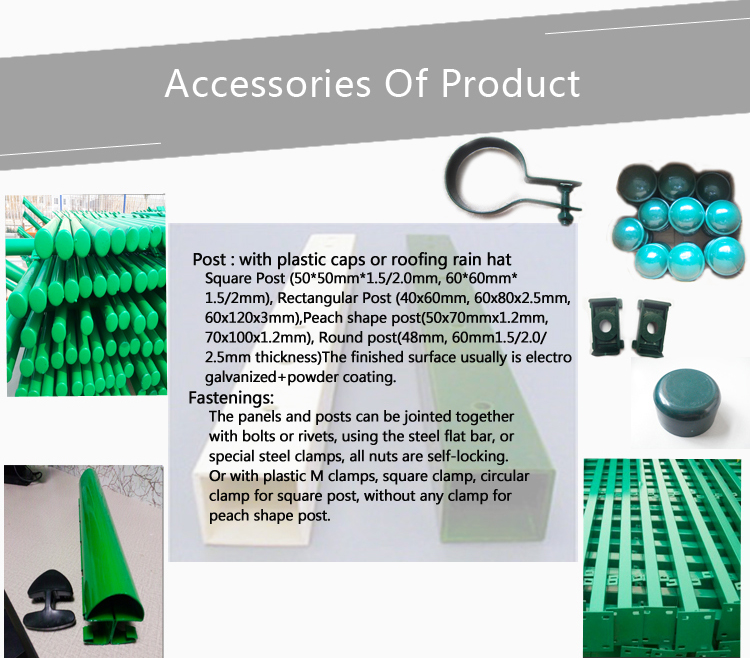

Post:

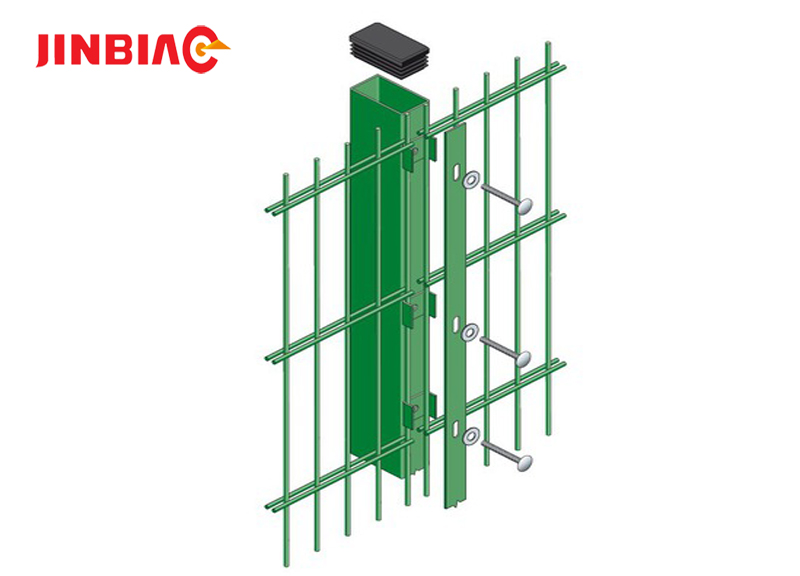

This System usually choose Square Post (50*50mm, 60*60mm), Rectangular Post (80*60*2. 5mm, 120*60*3mm) With the high strength and so on. With plastic caps or Roofing rainhat. The finished surface usually is Galvanized and Powder coating, or alternatively.

Double Wire Fence
Height x Width (Panel) mm	Mesh Size mm.	Wire Diameter			Post of Height mm
Height x Width (Panel) mm	Mesh Size mm.	Wire Dia mm	Wire Dia mm	Wire Dia mm	Post of Height mm
630*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	1100
830*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	1300
1030*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	1500
1230*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	1700
1430*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	1900
1630*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	2100
1830*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	2400
2030*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	2600
2230*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	2800
2430*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	3000

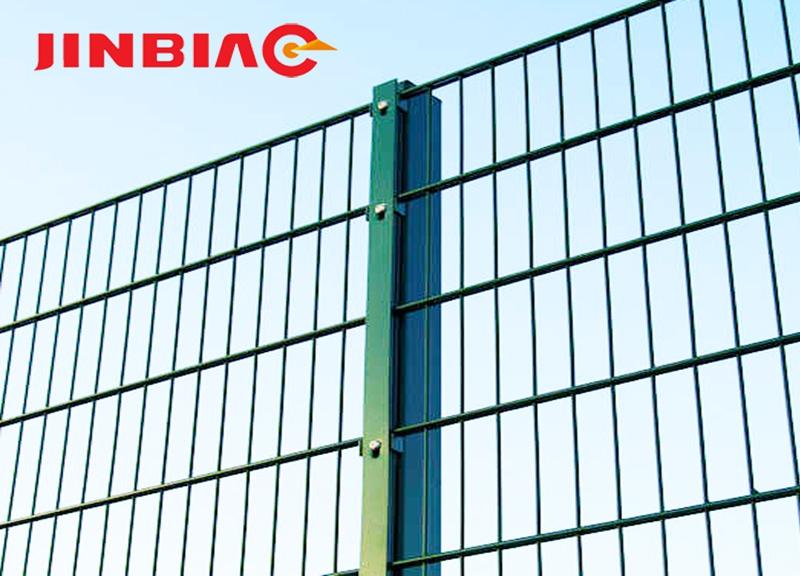

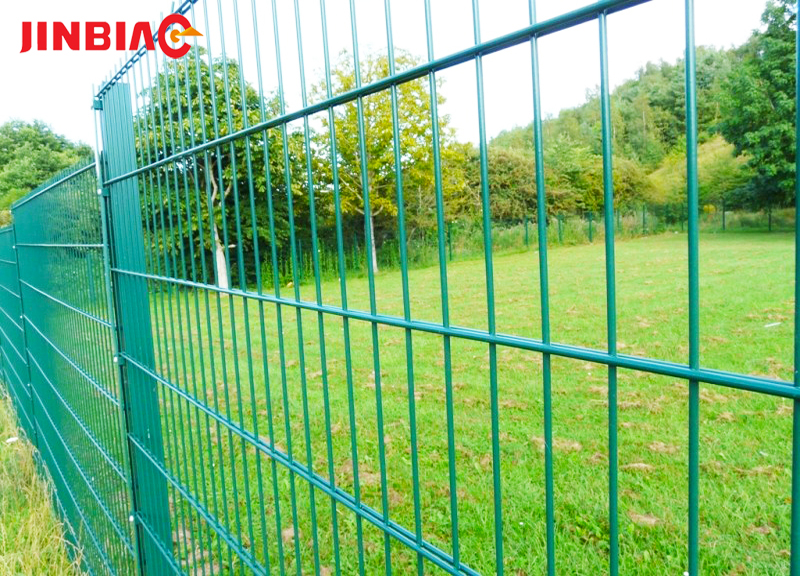

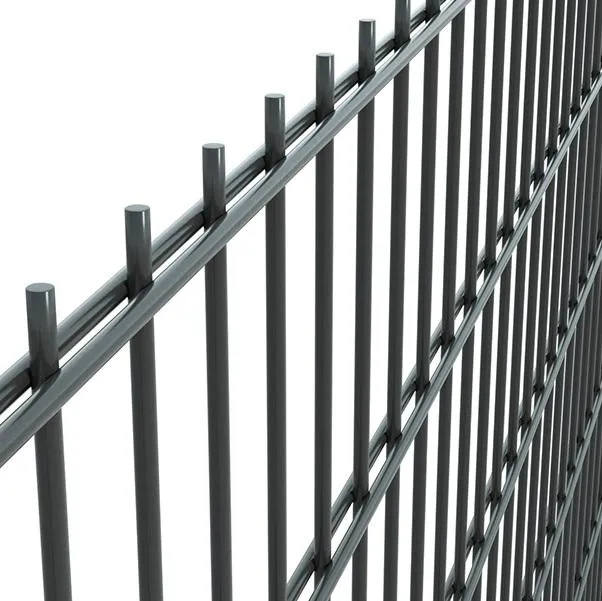

double wire fence 1.jpg

Introduction:
The panel is welded different, with two horizontal wires. It en:able the fence much stronge.

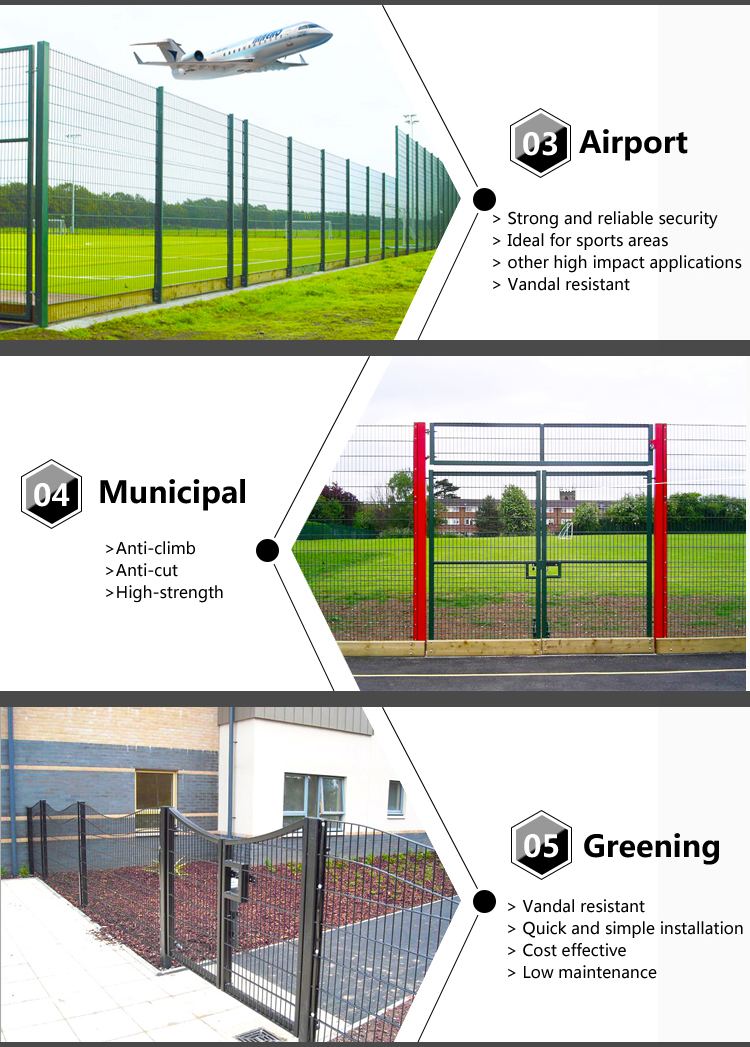

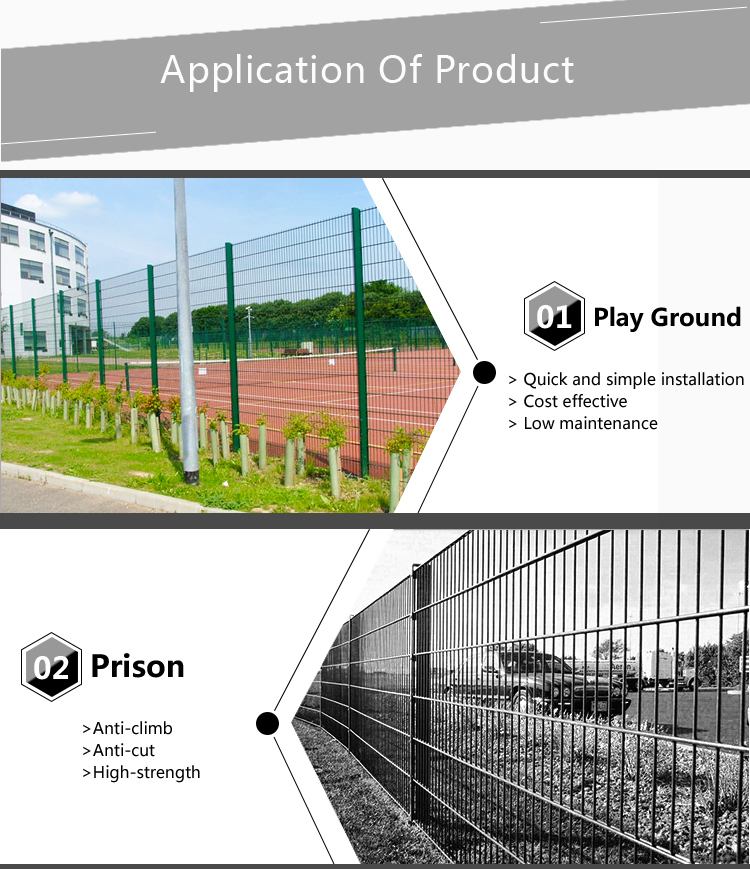

Widely used in highways,railways,airports,bridges,parks,etc.

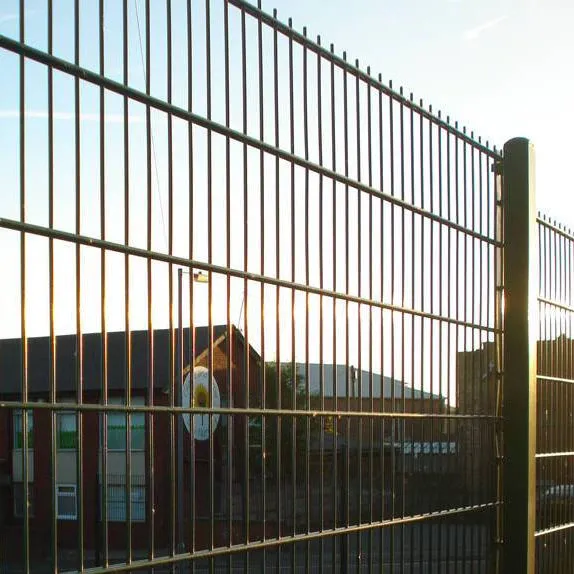

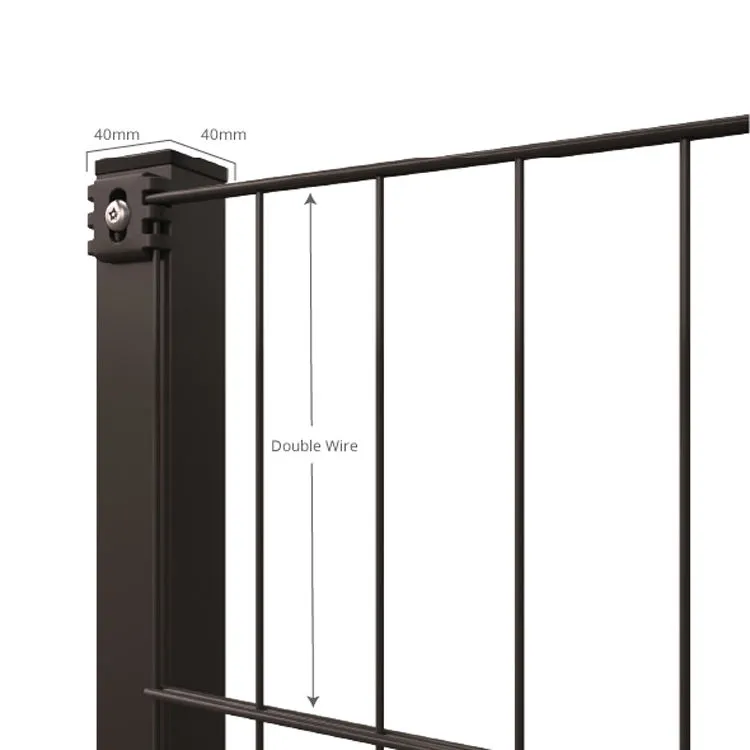

double wire fence3 .jpg double wire fence4 .jpg

Surface Treatment:
Electric Gal.: 40~60g/sq. M.
Hot dipped Gal.: 40~500g/sq. M.
Powders spread coating: 160~240 microns
PVC/PE dipped coating: 600~1000 microns

Common Colors:
Moss green (RAL6005),
Pure white (RAL9010),
Stone grey (RAL7030),
Traffic red (RAL3020),
Traffic yellow (RAL1023), and Traffic blue (RAL5017).
Besides, other RAL color required can be delivered to us.

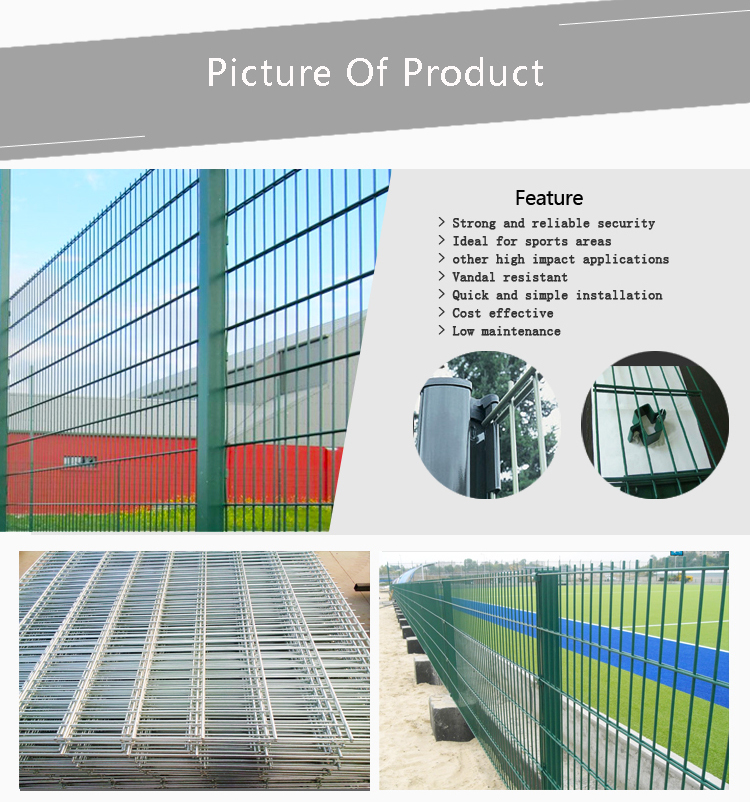

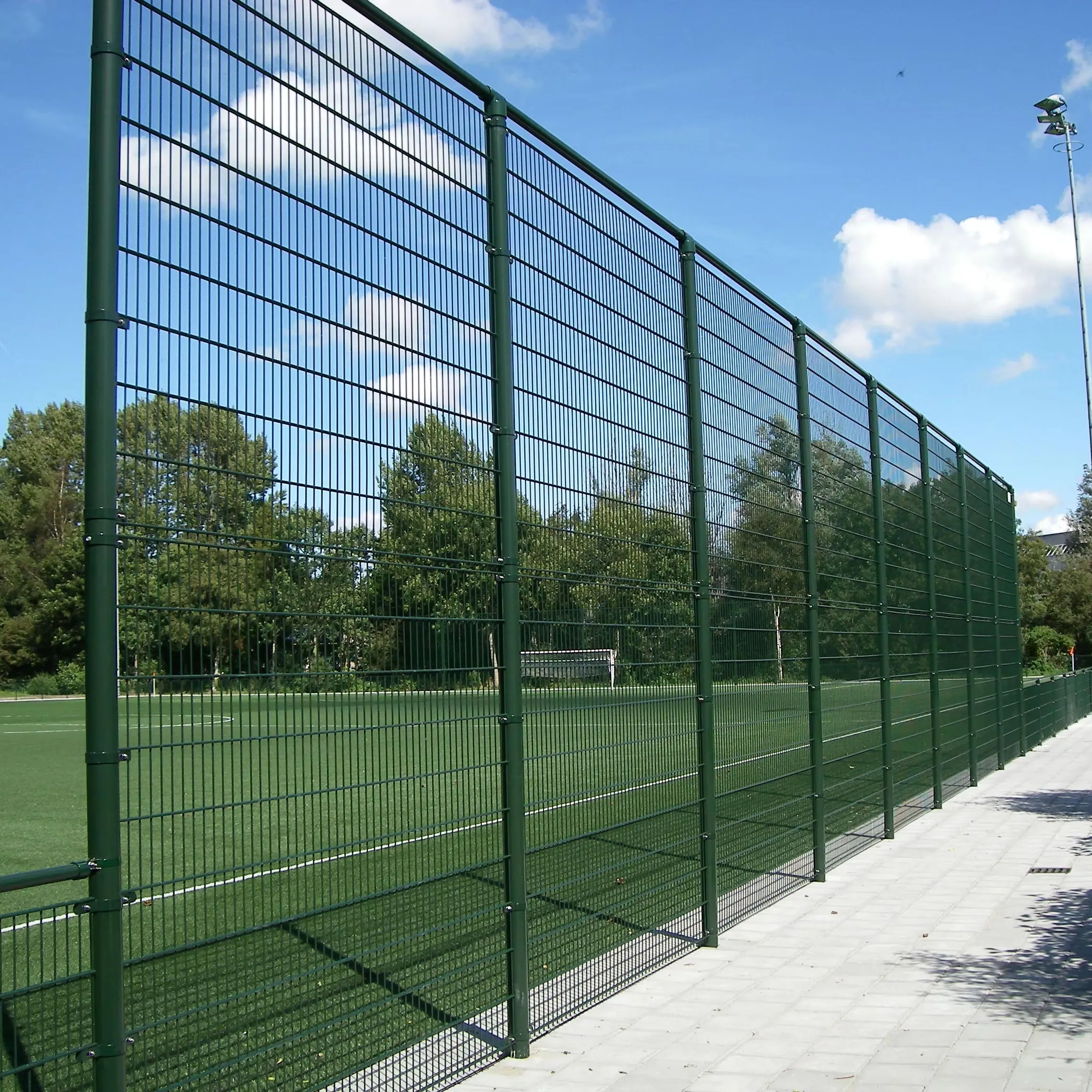

double wire fence2 .jpg

double wire fence5 .jpg
